RAYCAP STRIKESORB SURGE ARRESTER TECHNOLOGY

TECHNOLOGY BREAKING LIMITS IN LV SURGE ARRESTER TECHNOLOGY

Getting rid of the possible problems of classical Rail type surge arresters, being able to provide protection up to 200kA peak value, ensuring the concept of immortality by giving a 20-year product warranty… With the STRIKESORB technology produced by our German partner Raycap and having no competitor in the World, damage to products and systems from Lightning and Grid impulses is now being stopped. Unfortunately, this technology is not used intensively in our country, but it is used intensively in the Telecommunication sector, Airports, Industrial Facilities, Wind and Solar Power Plants worldwide. Strikesorb technology offers us the world’s most advanced high-capacity varistor and spark gap technology that can be connected in series to the system. Once installed, the possibility of being damaged as a result of lightning and grid impulses is eliminated. So what are the prominent features of Strikesorb technology;

1- It can be connected in Series to the system and energy flows through Strikesorb modules.

2- It puts an end to cable connection and detects the impulse at the first entry point.

3- It can detect the impulse in a short time like 1ns.

4- It complies with all IEC 61643-11, UL 1449, IEEE C62, VDE Norms.

5- It can provide protection up to 200kA peak value.

6- It can operate even under 2400 V continuous voltage.

7- 20 YEAR System protection and product warranty is offered. All Strikesorbs that will fail or be damaged during this period will be replaced free of charge by Yılkomer.

8- It provides absolute protection against secondary impulses.

9- The Heat Effect of Lightning is completely solved and the product is not damaged as a result of heat.
[Image of Strikesorb internal structure diagram]

10- 100% detection guarantee for all sudden overvoltages coming through the system.

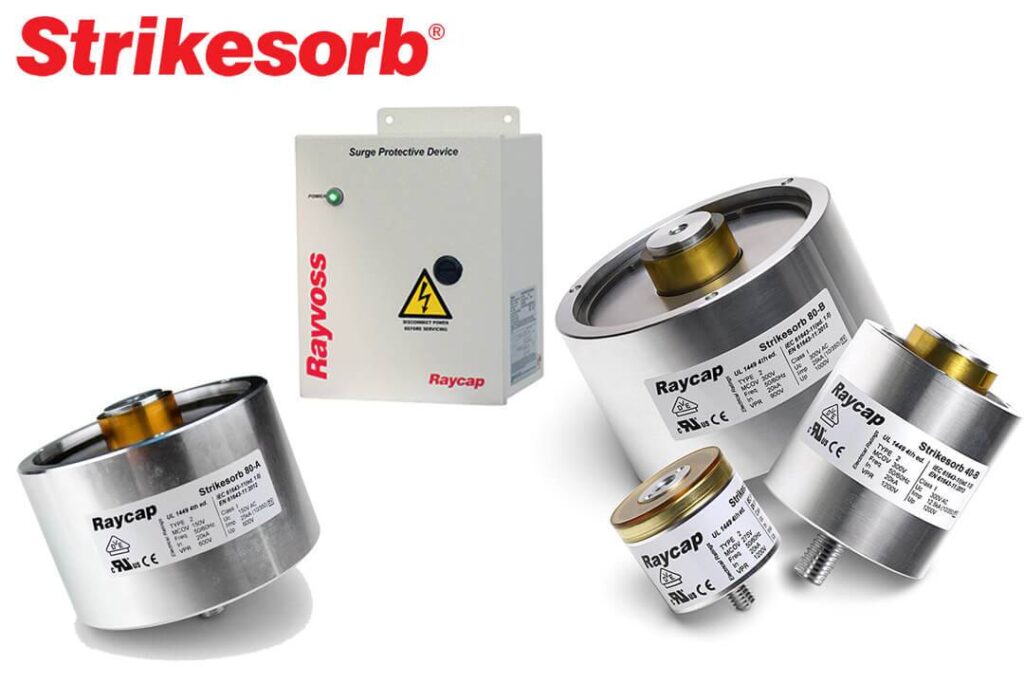

STRIKESORB FAMILY

The Strikesorb product group is quite simple and easy to select.

The Strikesorb family is basically divided into 4 groups;

Strikesorb 30 AC provides protection in the Type 2 category and has a 60kA protection capacity in this category.

Strikesorb 40 AC provides protection in the Type 1+2 category and has a 160kA protection capacity in this category.

Strikesorb 80 AC provides protection in the Type 1+2 category and has a 200kA protection capacity in this category.

Strikesorb 35 is used for the protection of DC Systems. It has a 100kA total protection value.

All products vary according to Uc Continuous voltage.

*In tests conducted in Denmark, Strikesorb modules successfully provided protection at 200kA peak value.

STRIKESORB APPLICATION

Strikesorb modules can be connected to the system in series and parallel.

Special fasteners are available for Strikesorb technology.

[Image of Strikesorb wiring diagram]

As the Lightning Protection Center, we protect Wind Turbines, Solar Power Plants, Factories, and strategically important military facilities, which are at constant risk of damage in our country, with Strikesorb Technology. While protecting the economic and strategic values of our country, we try to contribute to sustainable production. You can always contact us for free survey and design. Remember Yılkomer Protects Your Values.
