Raycap Protec T2C – Electric Vehicle Charging Station Low-Voltage SPD System
5 June 2022
CMCE 120 Atmospheric Protection Technology
16 July 2022

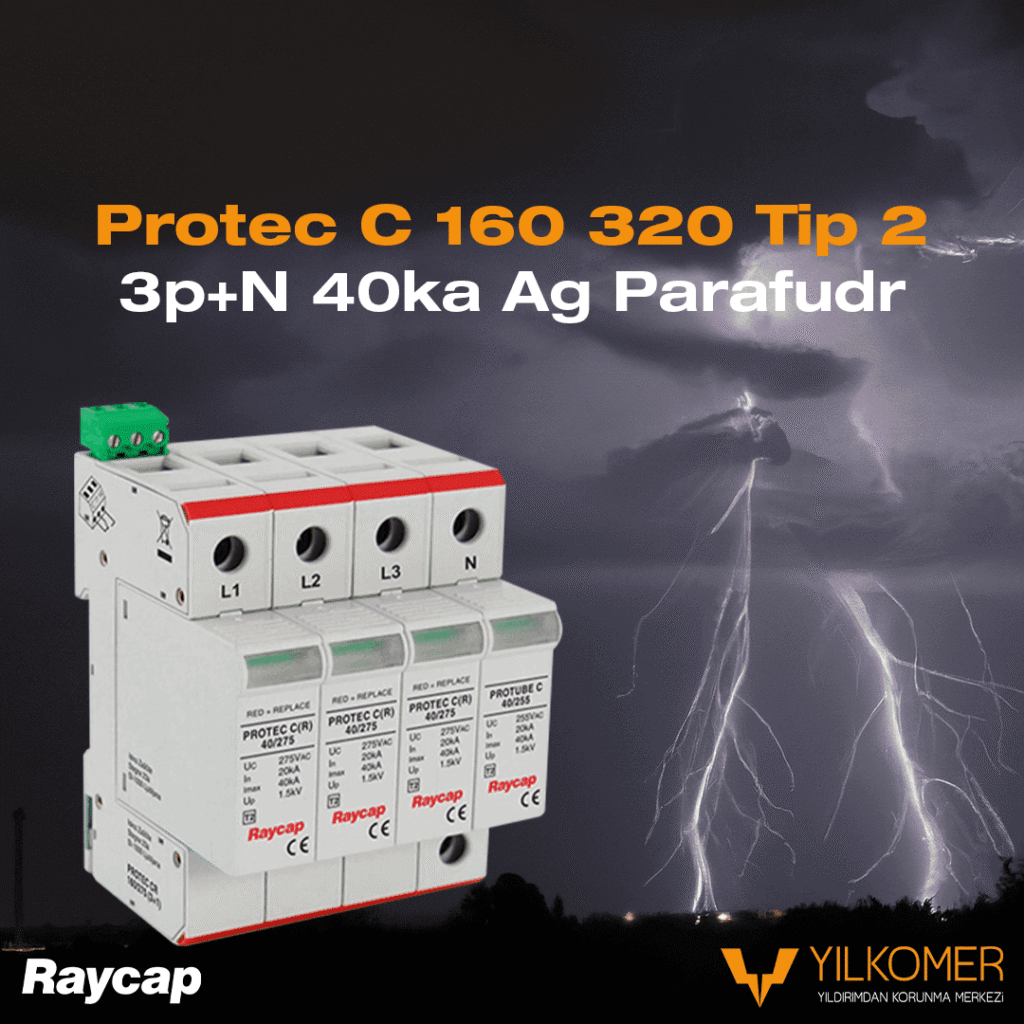

The PROTEC C 160/320 TYPE 2 40kA 3P+N 50A047 Raycap TYPE 2 SPD system is designed to protect your system against sudden overvoltage surges, switching impulses, harmonics, grid peaks, and coupling surges by activating within 25 nanoseconds. With a 40 kiloampere maximum peak discharge capacity and Safetec technology modules, it provides defense against an unlimited number of surges within its capacity. Our PROTEC C 50A047 TYPE 2 SPD, consisting of a hybrid technology of metal oxide varistors and gas discharge tubes, delivers effective protection from the smallest impulses to the most powerful surges. Tested on the 8/20 ms waveform and focused on protection against long-duration transient overvoltage surges occurring on this curve, the Raycap PROTEC C series is particularly expert in long-term protection thanks to its thermal protection circuit.
The cartridge of the Raycap PROTEC C 160/320 Series features green and red status indicators. When the cartridge is damaged after exposure to a maximum surge, the indicator changes from green to red. You can replace this cartridge during physical inspections. If on-site access is not possible, the remote signaling contact output allows you to monitor the device remotely and determine the need for replacement. In addition, the Raycap PROTEC C 160/320 TYPE 2 Class C SPD can operate in integration with PROLEC BASIC in-panel surge counters, enabling easy notification of replacement requirements.
The Raycap PROTEC C series can be safely used in TT and TN-S grounding systems. The SPD, integrated in parallel to the system, must be connected using a cable with a minimum cross-section of 16 mm². Cable lengths are very important during the installation of the PROTEC C TYPE 2 40kA series and should be kept as short as possible. Remember that cable length creates voltage drop, which affects the desired Up value. The Protec C series has an Up value below 1.5 kV. The product operates within a temperature range of -40°C to +85°C.
A protective fuse may be used upstream solely to allow intervention on the SPD. In standard applications, a 63 A fuse is preferred, and it must always be rated lower than the main fuse.
All Raycap SPD families, for which we hold national responsibility, are available in our stock. You may consult our expert team for site surveys and product selection.
The Raycap PROTEC C 160/320 Series, available in single-phase and three-phase options, is in stock at Yılkomer.
For product requests and pricing information, you can contact us via info@yilkomer.com or through our WhatsApp support line.
Remember, Yılkomer ‘Protects Your Values!’
