Questions About Lightning Protection Systems

What is a Lightning Rod (Paratoner)?

It is a lightning protection method that attracts the lightning impulse to itself as a result of ionization.

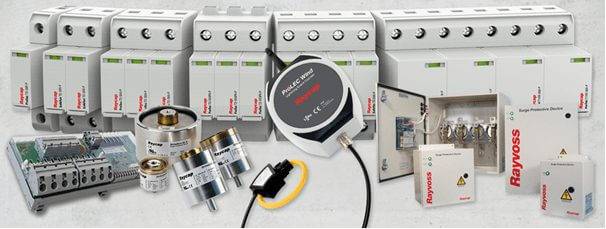

What is an LV Surge Arrester?

It is the name given to all products that protect electrical systems, energy, data, and coaxial lines against lightning and sudden overvoltage impulses. Naming such as Internal Lightning Protection, Overvoltage Protection Module, Surge Protection Device, SPD are also available.

What is a Faraday Cage?

It is the safest lightning protection system emerging as a result of the joint design of Rolling Sphere, Protection Angle creation, and Mesh Method methods.

What is a Passive Air Terminal System?

It is a universal lightning protection method designed by calculating protection angles that do not attract lightning but activate when it is about to fall.

How are Lightning Down Conductors Classified?

Lightning down conductors are divided into two as bare and insulated. Different materials such as copper, galvanized steel, aluminum, almgsi can be used as material according to cross-section and compliance with the standard.

What is an Insulated Lightning Down Conductor?

It is the safest lightning down conductor system with special test certificates reaching up to 28,000 Celsius and 200kA insulation levels, protecting against electrical, magnetic, and physical damages of the lightning impulse.

What is Separation Distance ‘s’?

It is the norm that allows the lightning impulse to descend bare from the landing surface only from a certain distance as a result of calculations specified by the standard. If a bare conductor is to be used near conductive surfaces, electrical lines, and flammable surfaces, it must descend from a certain separation distance ‘s’.

What is Class B (Type 1) Surge Arrester?

It is an LV Surge Arrester product that provides protection against lightning impulses according to the 10/350ms waveform.

What is Class C (Type 2) Surge Arrester?

It is an LV Surge Arrester product that provides protection against grid impulses, sudden voltage surges, switching impulses, harmonics, and all other secondary impulses according to the 8/20ms waveform.

What is Class D (Type 3) Surge Arrester?

These are products that provide sensitive protection of energy, data, and coaxial lines. These are products that protect weak current systems, systems operating at low DC voltage, Ethernet, modem, and communication lines, protecting the most strategic points.

What is Type 1+2 Surge Arrester?

These are products that provide protection against both lightning and grid impulses.

What is the Imax Value in LV Surge Arresters?

The Imax value is the lightning protection characteristic according to the 8/20ms waveform.

What is the Iimp Value in LV Surge Arresters?

The Iimp value is the lightning protection characteristic according to the 10/350ms waveform.

What is Safetec Technology?

It is the World’s longest-lasting LV Surge Arrester Technology patented by Raycap company. It is a long-lasting technology where MOV and GDTs work jointly.

What is Strikesorb Technology?

These are the World’s strongest products reaching up to 400kA protection level, mounted directly on the busbar, produced by Raycap company as an alternative to classic DIN Rail surge arresters.

What is the Relationship Between Raycap and Iskra Zascite?

German Raycap company acquired the Slovenian Giant manufacturer Iskra Zascite company in 2016 and incorporated it. Thus, an organization with the World’s widest range of protection products was created.

What is the Concept of Equipotential?

All grounds in facilities must be equipotential. Equipotential difference is the most serious reason that will cause fault currents to damage the facility. Lightning protection grounding must also be included in the equipotential system.

What are the Types of Grounding?

Functional grounding, Operational Grounding, Protection Grounding, Foundation Grounding basically constitute the types of grounding. Grounding types such as lightning protection systems are included in the concept of Functional grounding.

How Should Lightning Protection Grounding Be Done?

Lightning protection grounding should be done in the opposite direction of the facility, in a way that the impulse is divided into parts, and should be reduced to the order of 5 ohms.

What is the Rolling Sphere Method?

It is the calculation of the integrated protection of different lightning air terminals within the scope of a system. It is the system where lightning is depicted as a sphere and moved away from the building with air terminals. It is the system most frequently applied by Yılkomer.

What is the Protection Angle Method?

It is the calculation of the protection of a single air terminal. Basically, it is providing protection in the form of a cone.

What is the Catenary Wire Method?

It is a single protection conductor providing a cone-shaped protection area.

What is the Difference Between Lightning Rod and Faraday Cage?

Lightning rod systems are active systems, Faraday system consists of passive systems. Lightning rod system consists of a single head, Faraday system consists of the combined operation of many system equipment.

What is the most accurate method for Grounding Measurement?

Loop Impedance (Stakeless Measurement) is the method where we reach the most accurate result.

What is the most correct lightning protection method in Solar Power Plants?

Systems designed with Rolling Sphere Method and passive air terminals are the most correct method.

What is DC Surge Arrester?

These are products protecting DC systems starting from 5V up to 1000V. In solar systems, 1000V PV Surge Arresters and 12, 24, 48v power output protections are the most popular ones.

What is 100kA protection level?

It is the protection value against lightning impulse where the Iimp value is 100kA.

What is TYPE 1+2+3 LV Surge Arrester?

These are products that reduce the Up level to the lowest stage and most effectively protect the systems fed behind it on an energy basis.

What is Cat, POE Line Protection?

These are products in the Class D LV Surge Arrester category integrated in series into the system protecting Cat, RJ45, POE lines.

What is Weak Current Protection?

These are protection surge arresters for 12, 24, 48v dc power lines, RS 232, RS485 Communication modules, telecom lines, and data lines.

What is 4-way Lightning Protection?

It is a system consisting of LV Surge Arrester, External Lightning Protection, Grounding, and Equipotential system concepts.

What is Foundation Grounding?

It is the type of grounding that must definitely be present at the foundation of buildings for the global grounding of the facility and static electrical discharge.

What is IEC 61643-11 Standard?

These are test norms that must be present in LV Surge Arrester products.

What is IEC 50539-11 Standard?

These are test norms that must be present in Photovoltaic (Solar) DC Surge Arresters.

Does Lightning Fall form Above or Rise from the Ground?

The lightning impulse occurs bidirectionally.

How many Km is the Lightning Impact Area?

The electrical impact area of the lightning impulse has a radius of 2 km.

How should we protect ourselves against lightning in Open Terrain?

If we are caught in lightning in open terrain, we must definitely crouch down, minimize our target, and join our heels.

What is Grid Impulse?

It is a sudden voltage rise coming over the grid. Every system receiving energy from the grid can be exposed to these impulses. The protection solution is Class C Type 2 surge arresters.

What are 10/350ms and 8/20ms waveforms?

The 10/350ms curve is the lightning characteristic, and the 8/20ms curve is the grid impulse characteristic.

What is a Tripod System?

It is the most popularly used system in the rolling sphere method. Systems reaching up to 8000mm in length are the most ideal lightning protection system elements used globally.

What is Spark Gap Surge Arrester?

These are products of strategic importance, especially in pipelines, which dampen arcs in equipotential connections and have the potential to prevent fire and explosions.

What is the most advanced LV surge arrester system in the World?

Raycap-Iskra Zascite Safetec technology is the safest and most effective LV Surge Arrester system.
